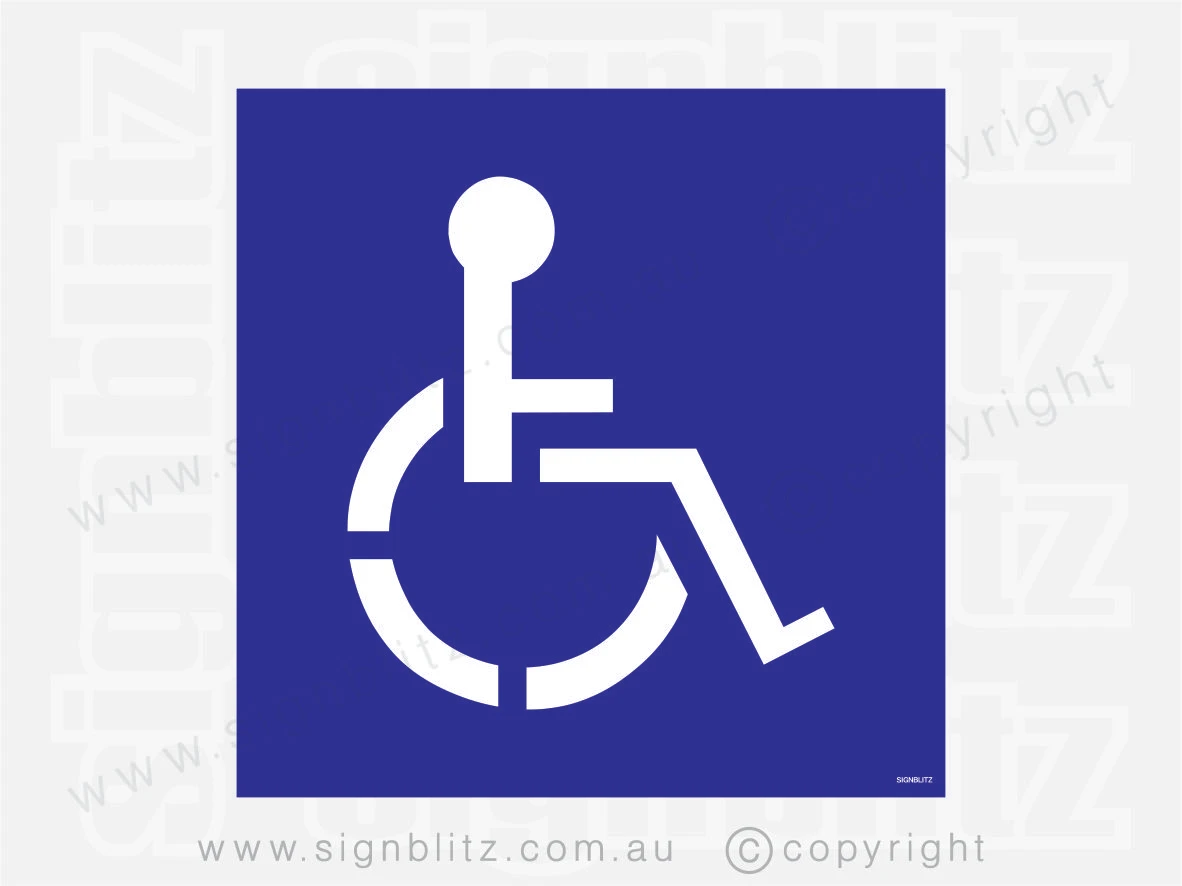

Disabled Parking Stencil is made to Australian Standard AS2890.6:2022. Each disabled parking bay should be identified with a white wheelchair symbol on a blue square. The symbol of access should be in accordance with AS1428.1 with a wheelchair symbol between 800-1000mm. The stencil should be placed in the centre of the parking bay (pavement marking) between 500-600mm from the entry point.
Our wheel chair symbol stencils are 1200x1200mm made on reusable polypropylene. Always in stock, ready for delivery Australia wide or pickup from Yennora in Western Sydney.
How do you paint a Disabled Parking Stencil?
Step 1. Clean, measure and mark area for paint using appropriate PPE and safety measures.
Step 2. Place stencil and mask around the outer square with tape, lift off stencil and paint the blue square then allow it to dry.
Step 3. Place the stencil over the painted blue box and paint the wheelchair symbol in white and allow it to dry.
Step 4. Lift off the stencil and remove the masking tape.
- Outer blue square is 1200x1200mm
- Wheelchair symbol is 900mm wide x 985mm high
You may also need Disability Parking Sign and Sign Posts.
Disabled Parking Stencil
Code: LM165
Disabled parking stencils are used for marking and painting of designated mobility and disability parking bays with the blue and white wheelchair template which is also known as the ISA or International Symbol of Access. The size of our stencil and wheelchair template is in accordance with Australian Standard AS2890.6:2022 which specifies the minimum requirements for the provision of off-street parking facilities for people with disabilities. Disabled parking stencils are used for various stenciling, linemarking and painting of: disabled car park bays, accessible areas, wheelchair ramps or disability access spots. We can also make custom wheelchair outlines and stencil templates in different sizes for other accessible applications, let us know your requirements in the notes.
Categories: Line Marking Stencils, Symbol Stencils
